The VMware Horizon 7 Network Ports document lists port requirements for connectivity between the various components and servers in a Horizon 7 deployment. Included are detailed Horizon 7 Network Ports diagrams.

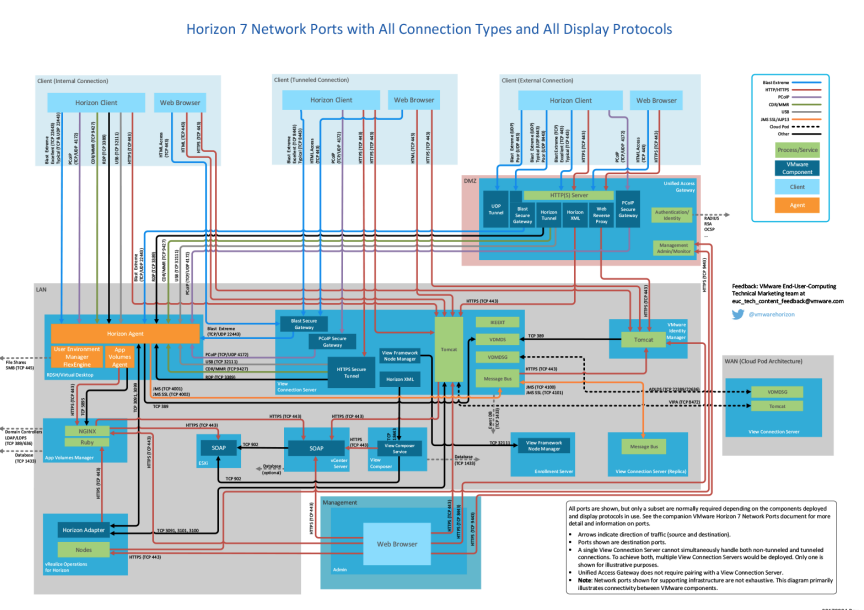

Links from the thumbnail diagrams take you to larger PDF layouts of the diagrams that are high resolution and ready for printing as posters. Each subset of the main diagram focuses on a particular connection type and display protocol use.
